GoodWe Products
GoodWe is a world-leading PV inverter manufacturer and smart energy solution provider that was founded in 2010. The company was listed on the Shanghai Stock Exchange (Stock Code: 688390) in 2020, solidifying its corporate reputation as a company that achieves sustainable growth in all markets it operates in.
GoodWe offers a wide range of inverters, spanning from 0.7kW to 350kW, catering to various solar system sizes and applications. With a long-standing and strong presence in the solar market, GoodWe’s PV inverters have been installed in over 100 countries, with a cumulative installation of 100 GW.

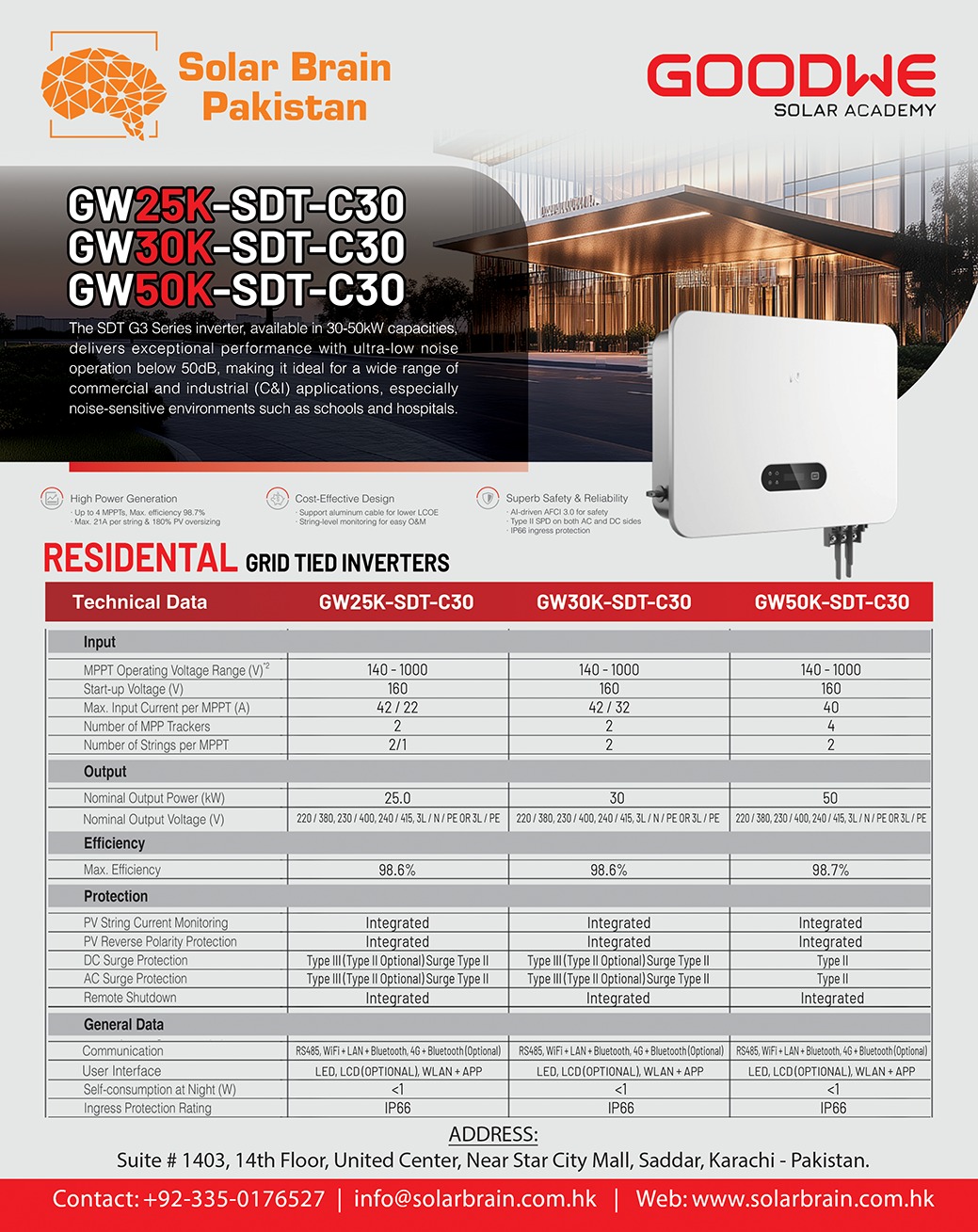

RESIDENTAL ON GRID INVERTERS
GW25K-SDT-C30
Leading Features
- Max. Input Voltage (V): 850
- Max. Input Current per MPPT (A): 32/42
- Number of MPP trackers/Number of Strings per MPPT: 2/2
- Weight (kg): 20.5
- Nominal Output Voltage (V) : 127/220, 3L/ N/PE or 3L/PE
GW30K-SDT-C30
GW50K-SDT-C30
Leading Features
- Up to 98.7% maximum efficiency for high energy conversion
- 180% DC input oversizing support for higher energy yield
- Multiple MPPTs (up to 4) for better performance on complex installations
- 21A string current compatible with high-power PV modules
- AI-based AFCI 3.0 protection for advanced fire safety
- Type II surge protection (AC & DC) for lightning and voltage spikes
- IP66-rated enclosure for harsh outdoor environments
- Ultra-low noise operation (<50 dB) suitable for commercial spaces
- Compact and lightweight design for easy installation
- String-level monitoring for smart diagnostics and reduced downtime
Commercial and Industrial On Grid Inverters
GW100K-GT
GW125K-GT
Leading Features
- High efficiency up to ~98.8% for maximum power generation
- Up to 1500V DC input system reduces BOS (Balance of System) cost
- Multiple MPPTs (up to 10) for complex and large-scale installations
- High DC/AC ratio support for better energy yield and system flexibility
- String-level monitoring for precise fault detection and performance tracking
- Advanced Anti-PID function to prevent module degradation
- IP66 protection rating for reliable outdoor operation
- Type II surge protection (AC & DC) for enhanced electrical safety
- Smart cooling system (fan-based) ensures stable performance in high temperatures
- Remote monitoring & communication options (RS485 / PLC / WiFi) for easy O&M

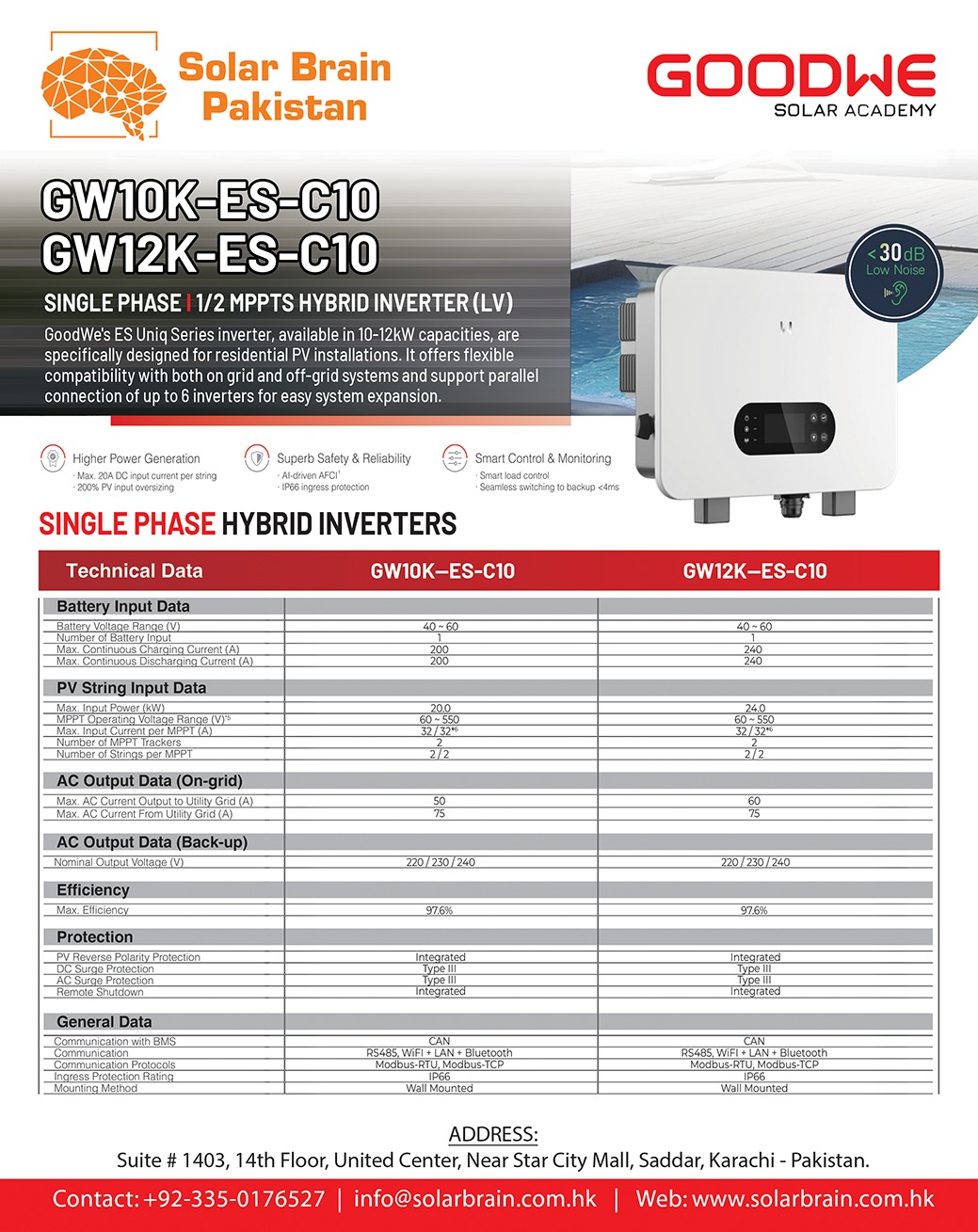

Single Phase Hybrid Inverters LV
GW10K-ES-C10
GW12K-ES-C10
Leading Features
- Hybrid inverter (grid + battery support) for maximum energy independence
- High efficiency up to ~97.6% for optimized performance
- UPS-level switching (<10 ms) ensures uninterrupted power during outages
- Wide battery compatibility (Li-ion) for flexible energy storage solutions
- High charging/discharging current for faster battery performance
- Supports parallel operation for system scalability
- Intelligent energy management system (EMS) for smart load control
- IP65 protection rating suitable for indoor & outdoor installation
- Quiet operation with natural cooling (low noise)
- Remote monitoring via mobile app & web portal for real-time system control

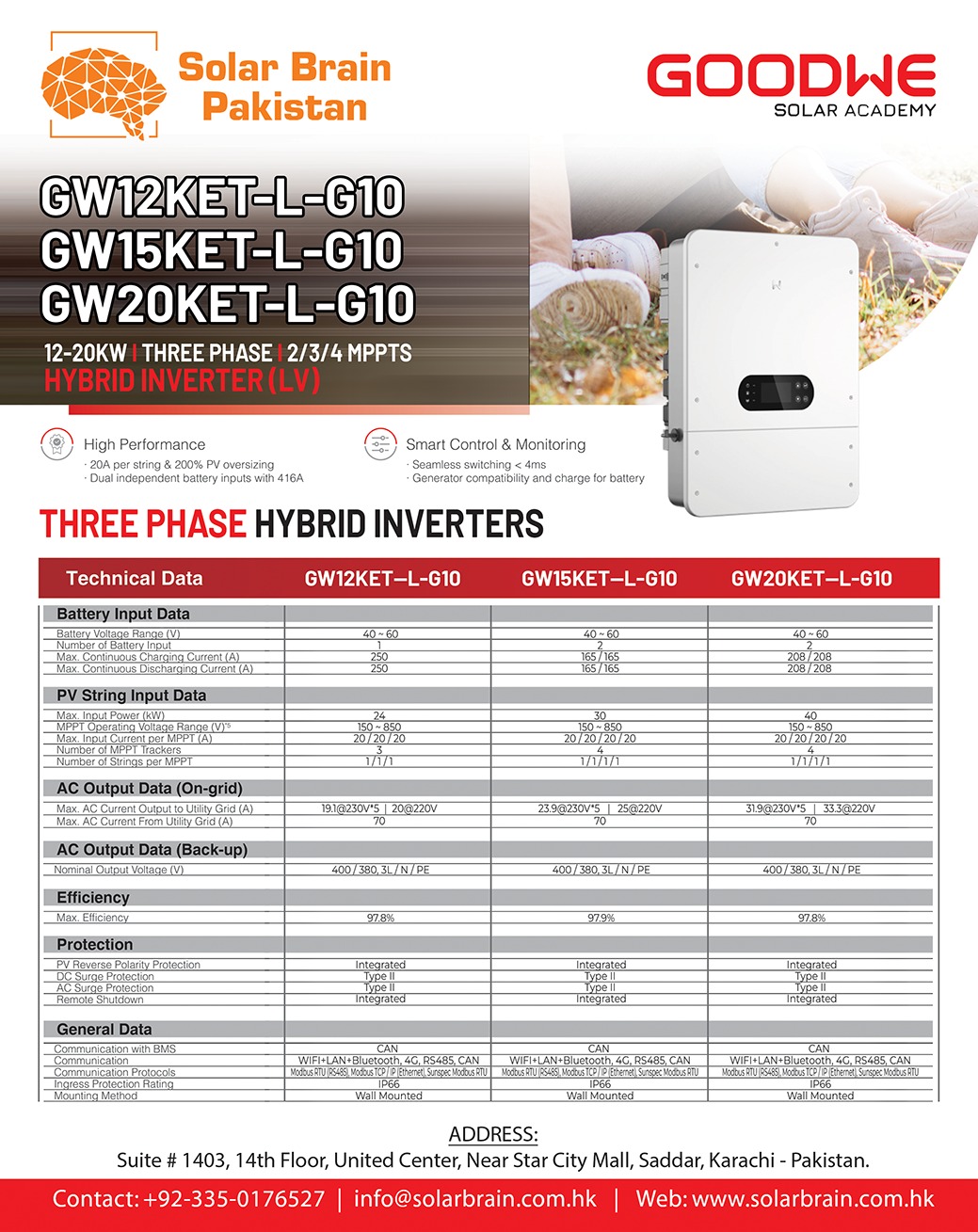

Three Phase Hybrid Inverters LV
GW12KET-L-G10
GW15KET-L-G10
GW20KET-L-G10
Leading Features
- Three-phase hybrid inverter (grid + battery + backup) for full energy flexibility
- High efficiency up to ~98.0% for optimal energy conversion
- UPS-level switching (<10 ms) ensures uninterrupted power supply
- Supports low-voltage (LV) batteries for safer and cost-effective storage
- High charge/discharge current for faster battery utilization
- Parallel operation support for system scalability in commercial setups
- 100% unbalanced load support across three phases
- Integrated EPS (Emergency Power Supply) for backup during grid outages
- IP66 protection rating for durable outdoor installation
- Smart monitoring & energy management system (EMS) via app/web
Hybrid Solar Solutions For Commerical and Industrial

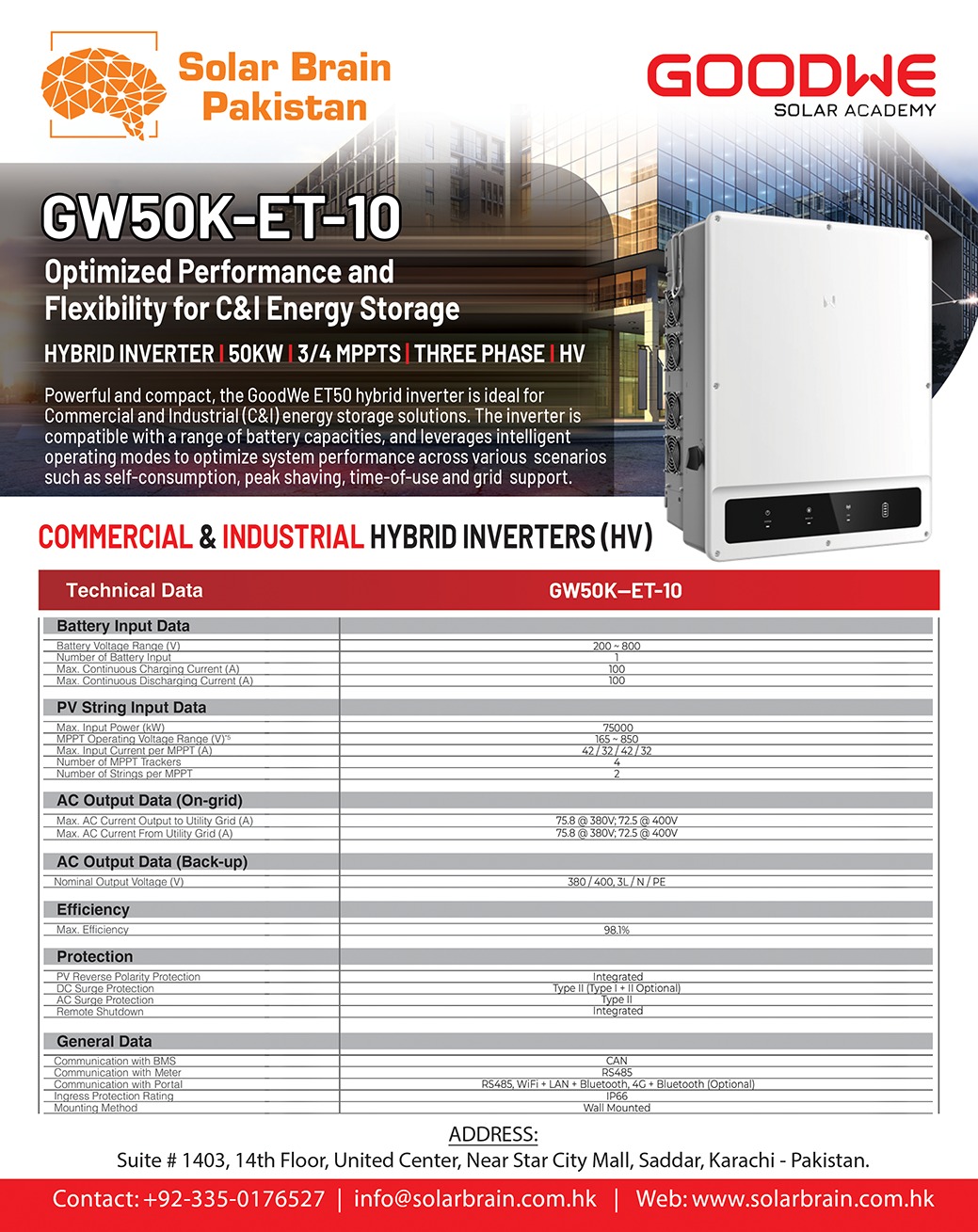

GW50K-ET-10 - 50KW Hybrid Inverter HV
Leading Features
- Three-phase hybrid inverter (grid + battery + generator support) for full energy control
- High efficiency up to ~98.4% for maximum energy conversion
- Supports high-voltage (HV) battery systems for large-scale storage applications
- UPS-level switching (<10 ms) ensures uninterrupted power supply
- Integrated EPS (Emergency Power Supply) for backup during outages
- Parallel operation capability for scaling large commercial systems
- 100% unbalanced load support across all three phases
- Advanced energy management system (EMS) for intelligent load and battery control
- IP66 protection rating for reliable outdoor installation
- Remote monitoring & smart communication options for efficient O&M

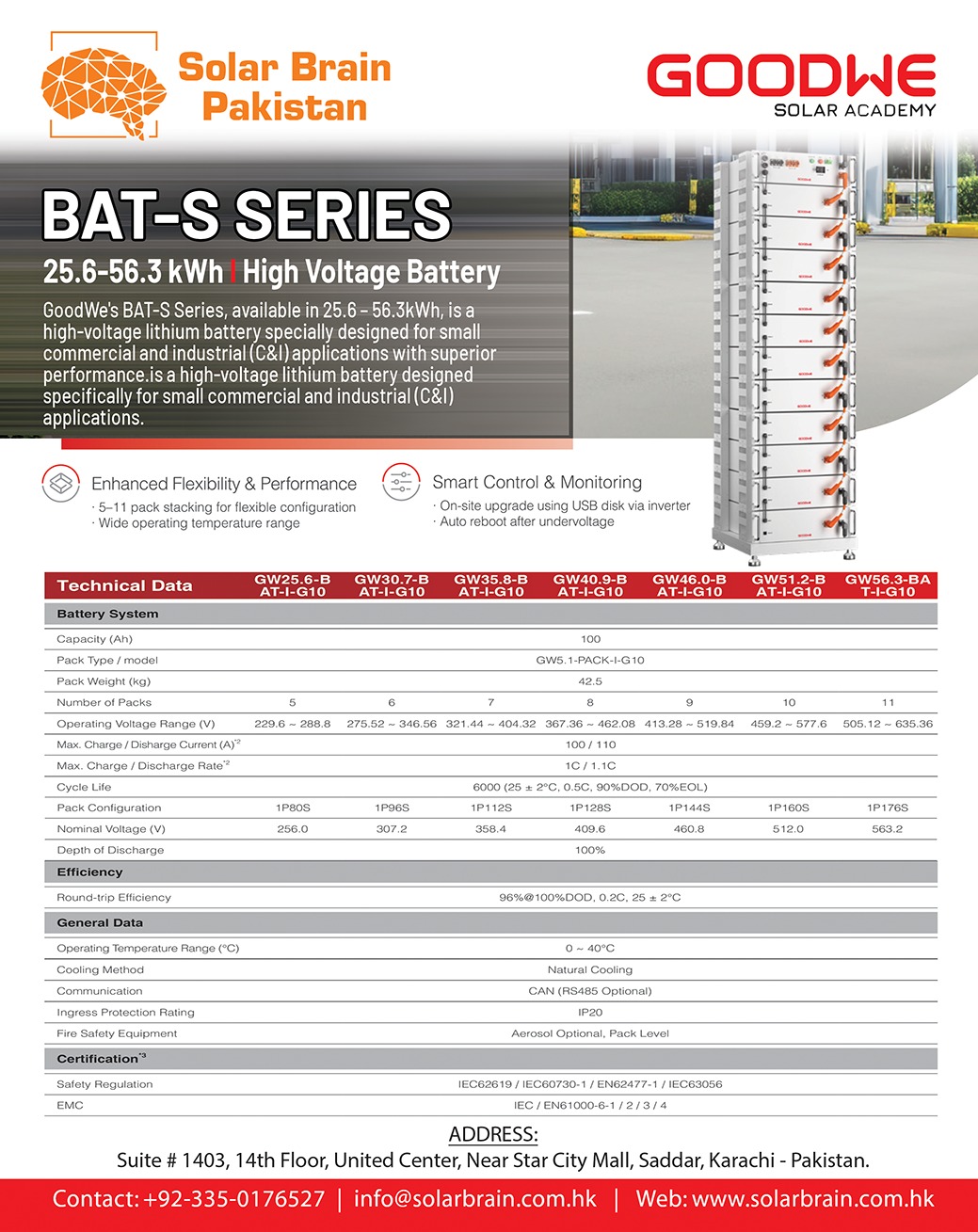

GW51.2-BAT-I-G10 - 50KW Battery Bank HV
Leading Features
- 51.2 kWh high-capacity battery system for large residential & C&I storage
- Lithium Iron Phosphate (LFP) technology for enhanced safety and long lifespan
- Modular and scalable design for flexible system expansion
- High charge/discharge efficiency for better energy utilization
- Wide temperature tolerance for reliable performance in harsh environments
- Built-in Battery Management System (BMS) for protection and optimization
- Supports parallel connection for increasing total storage capacity
- Long cycle life (>6000 cycles) ensuring long-term reliability
- Floor-standing design for easy installation and maintenance
- Compatible with GoodWe hybrid inverters for seamless integration
